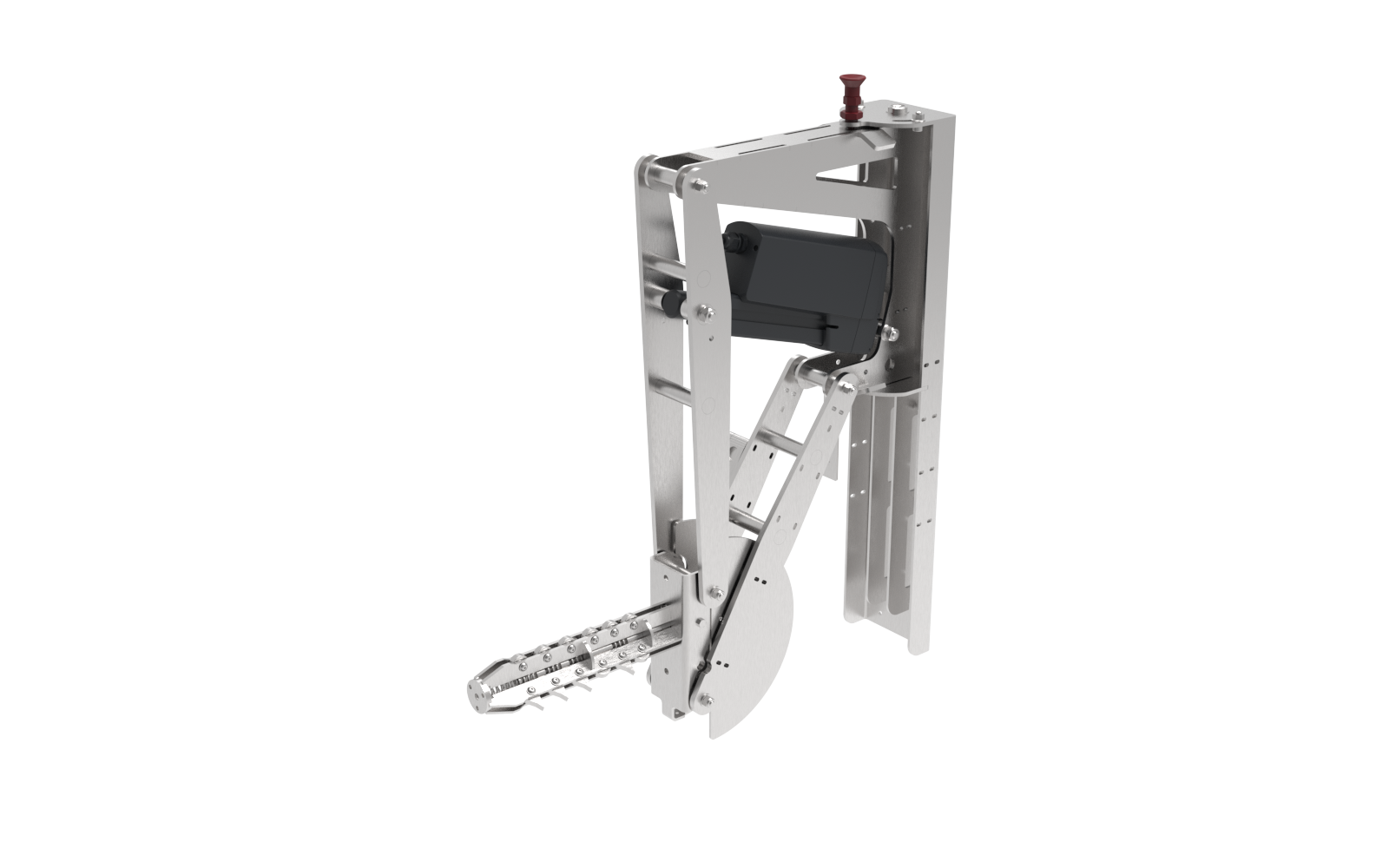

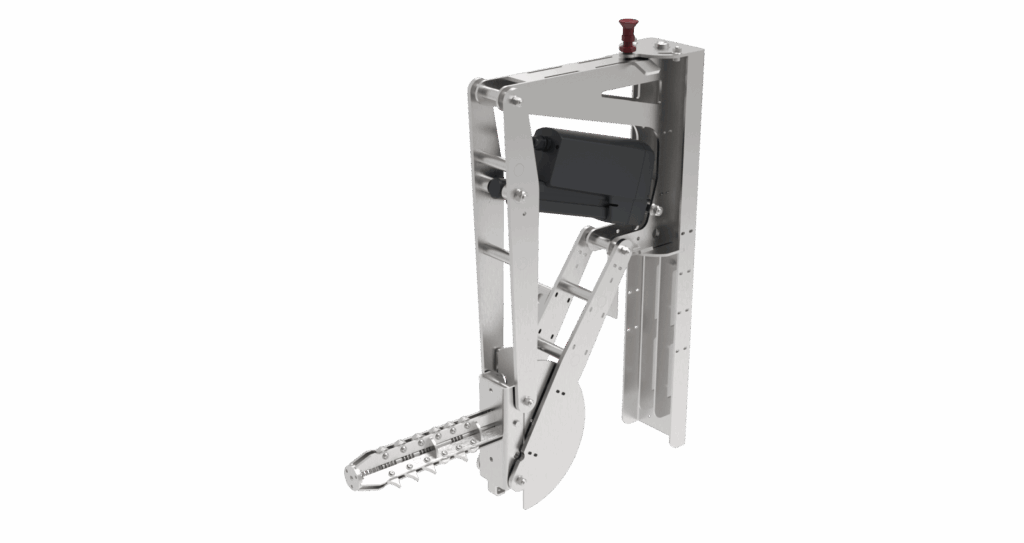

Stainless steel Core gripper

The electric 90° core gripper enables the handling of loads up to 110 kg and weighs 30 kg.
It features a 304 L stainless steel finish.
The diameter is 76 mm. It allows for the handling of coils with a maximum radius of 600 mm and a length of 600 mm.

This tool is compatible with the following trolleys: R.125 – R.205 – R.285

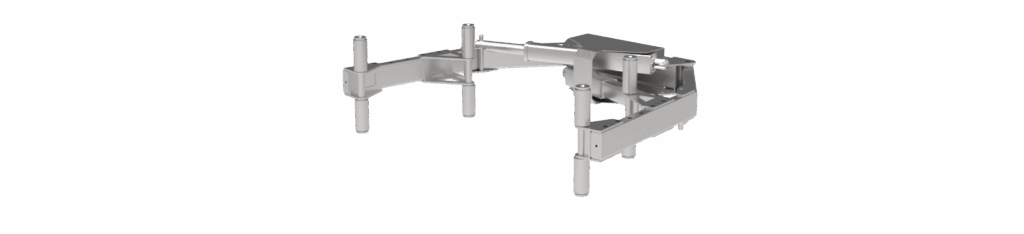

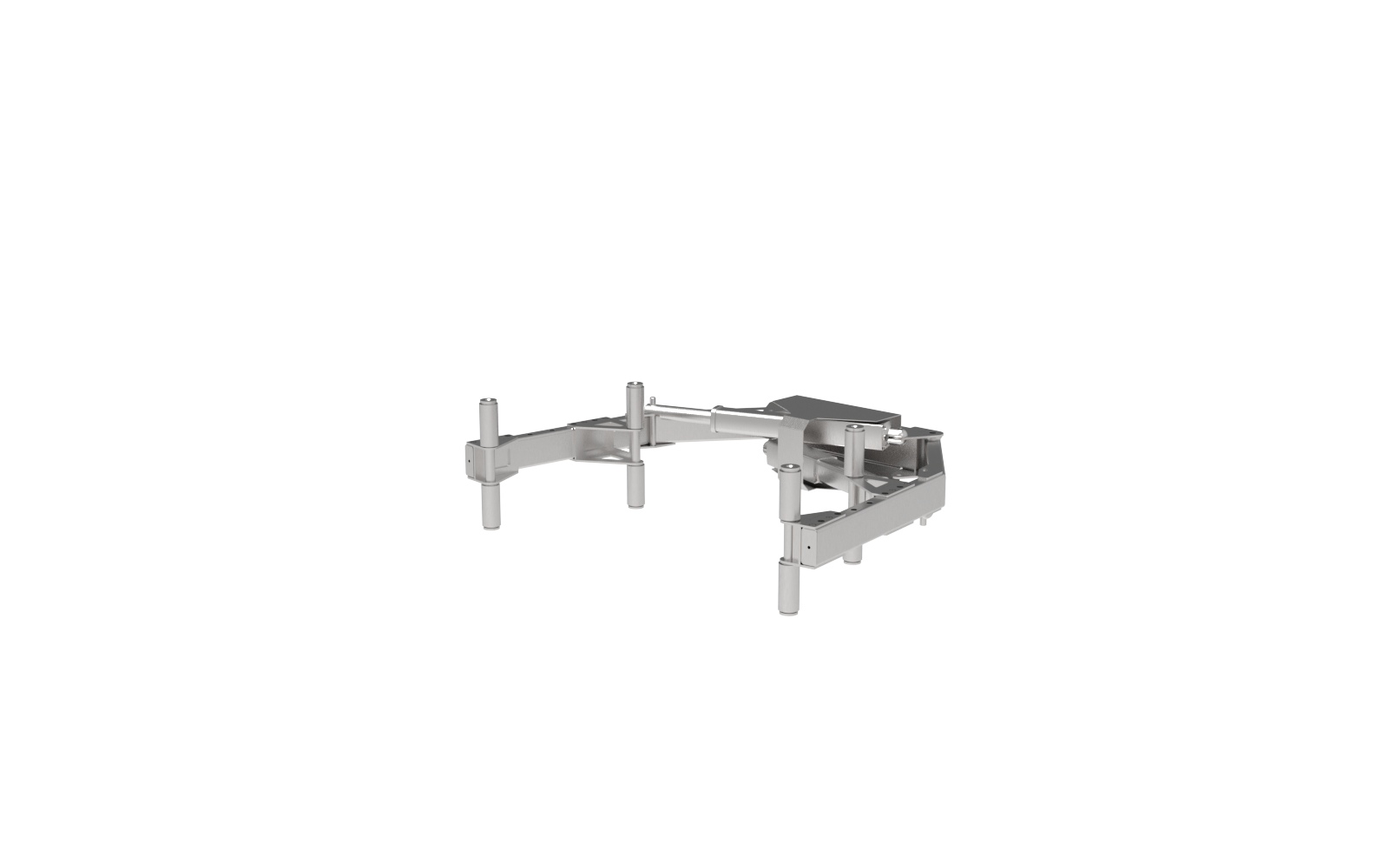

Stainless steel Electric clamp

The stainless steel electric clamp enables the handling of loads up to 120 kg on the R.205 cart and 95 kg on the R.125 cart, and it weighs 13 kg.
It features a 304 L stainless steel finish.
The clamping range of the clamp is between 250 and 600 mm.

This tool is compatible with the following trolleys: R.125 – R.205 – R.285

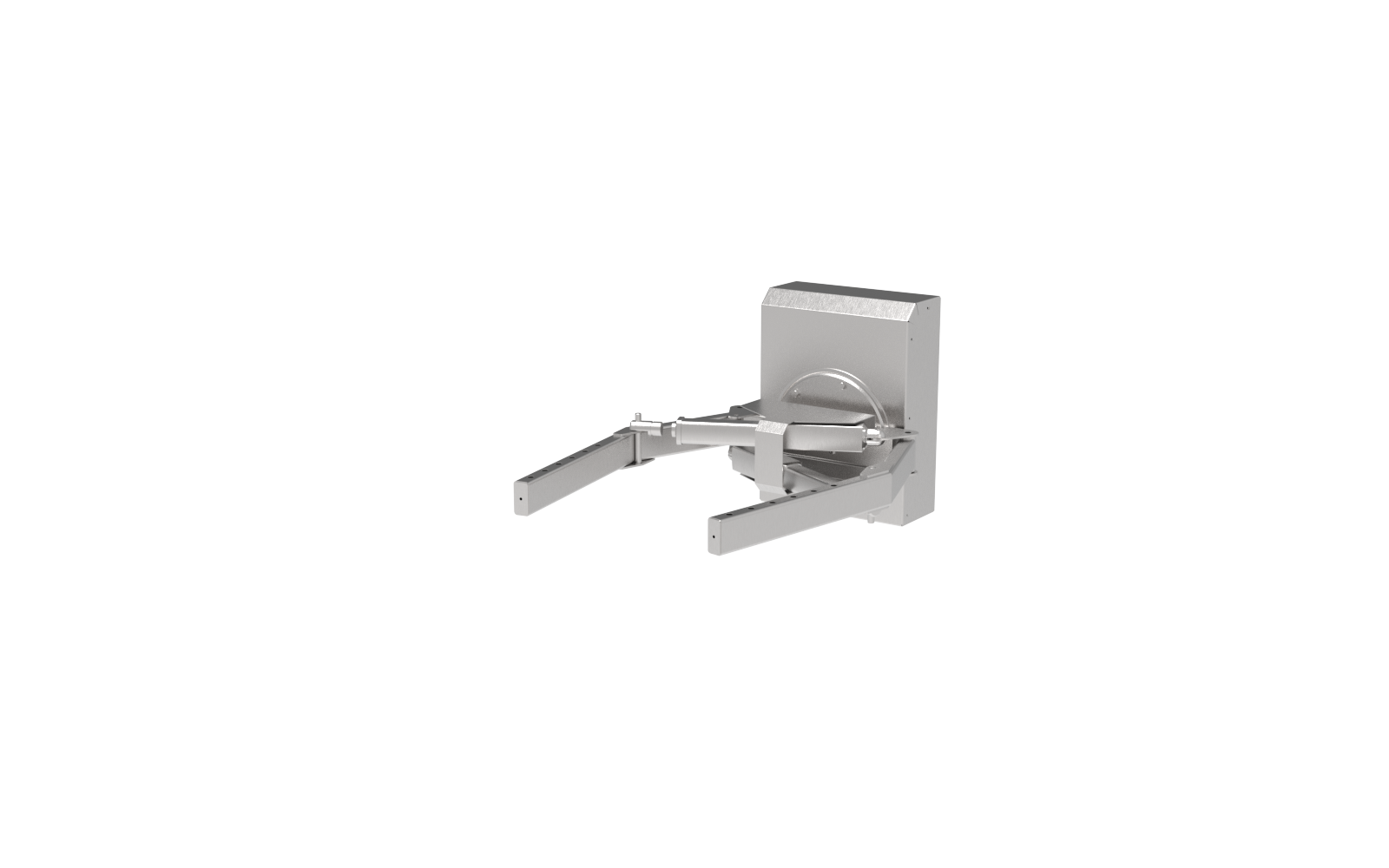

Electric clamp with rotation system 360°

The electric clamp with electric rotation allows handling of loads up to 120 kg on the R.205 cart and 50 kg on the R.125 cart, weighing 38 kg.
Its maximum torque is 120 Nm. It features a 304 L stainless steel finish.
The clamping range of the clamp is between 200 and 600 mm and has 3 programmable positions.

This tool is compatible with the following trolleys: R.65 – R.85 – R.125 – R.205
