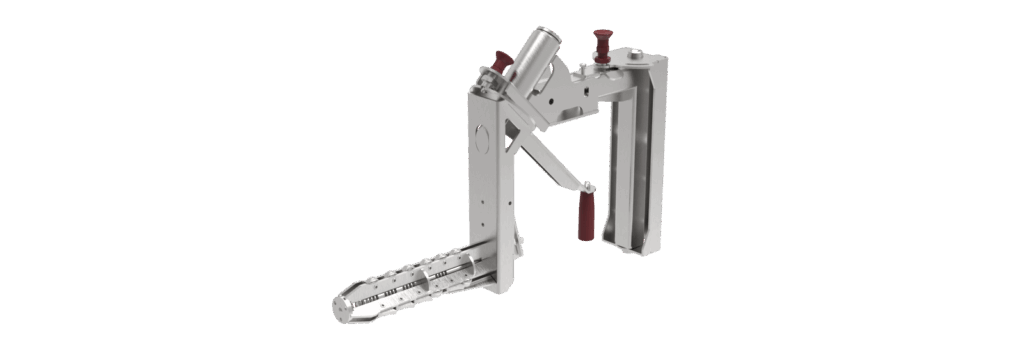

Articulated core gripper for wrapping reel

The articulated core gripperr allows for the handling of loads up to 50 kg and weighs 9 kg.
The tool is made of stainless steel.
It enables the handling of coils from 400 to 1200 mm in length and with an outer diameter ranging from 200 to 600 mm. The mandrel diameter is 76 mm.

This tool is compatible with the following trolleys: R.55 – R.65

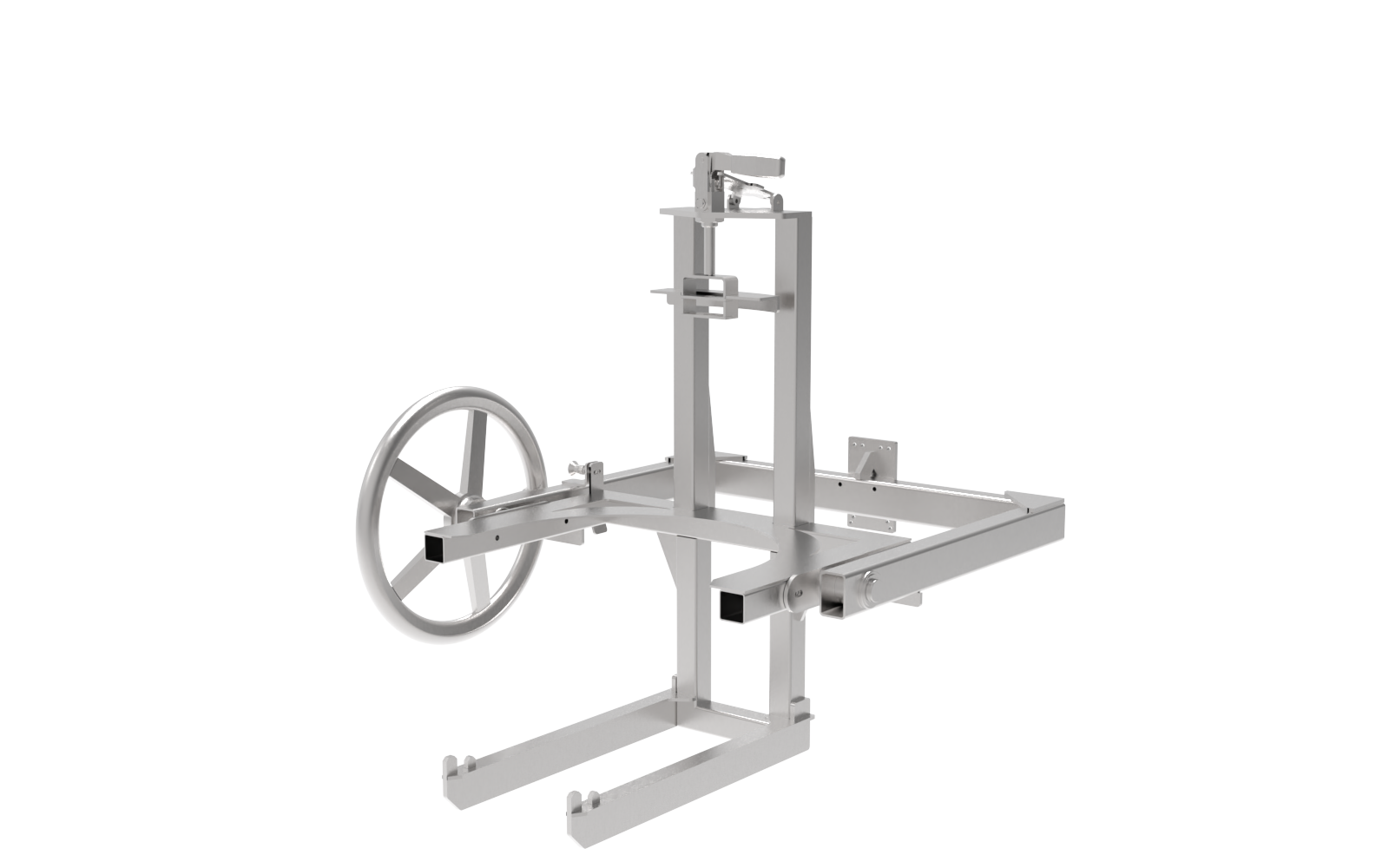

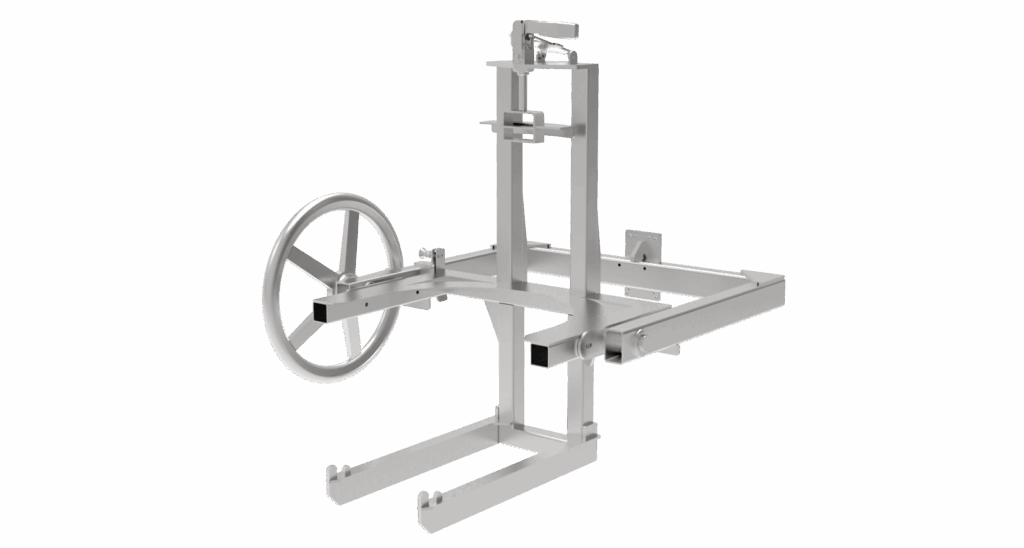

Manual front tilting gripper for drums

The front tilting gripper with a handwheel allows for the handling of loads up to 80 kg.
The tool is available in two customizable versions, one in steel and one in stainless steel.
Its dimensions depend on the customer’s specific piece and are tailored to fit it.

This tool is compatible with the following trolleys: R.65 – R.85 – R.125 – R.205

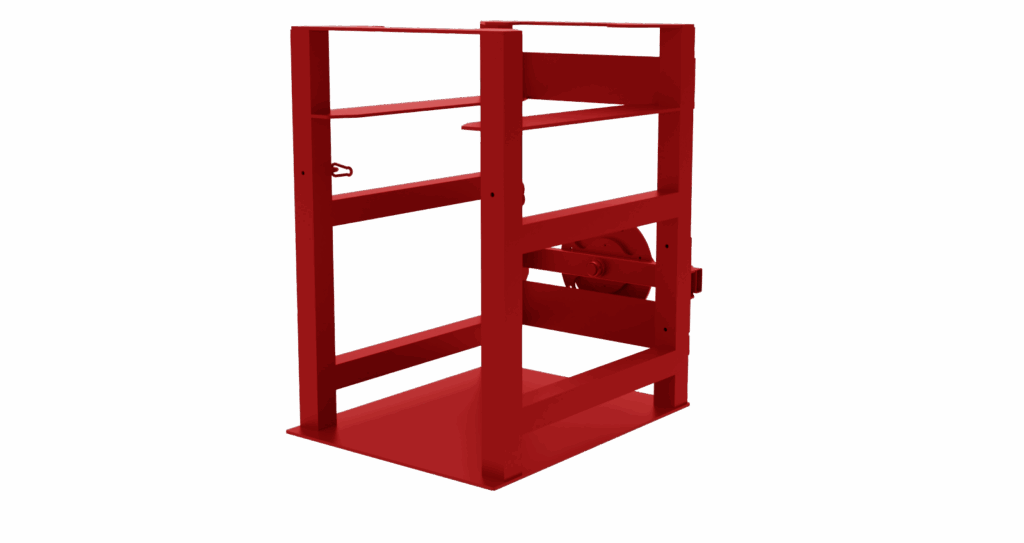

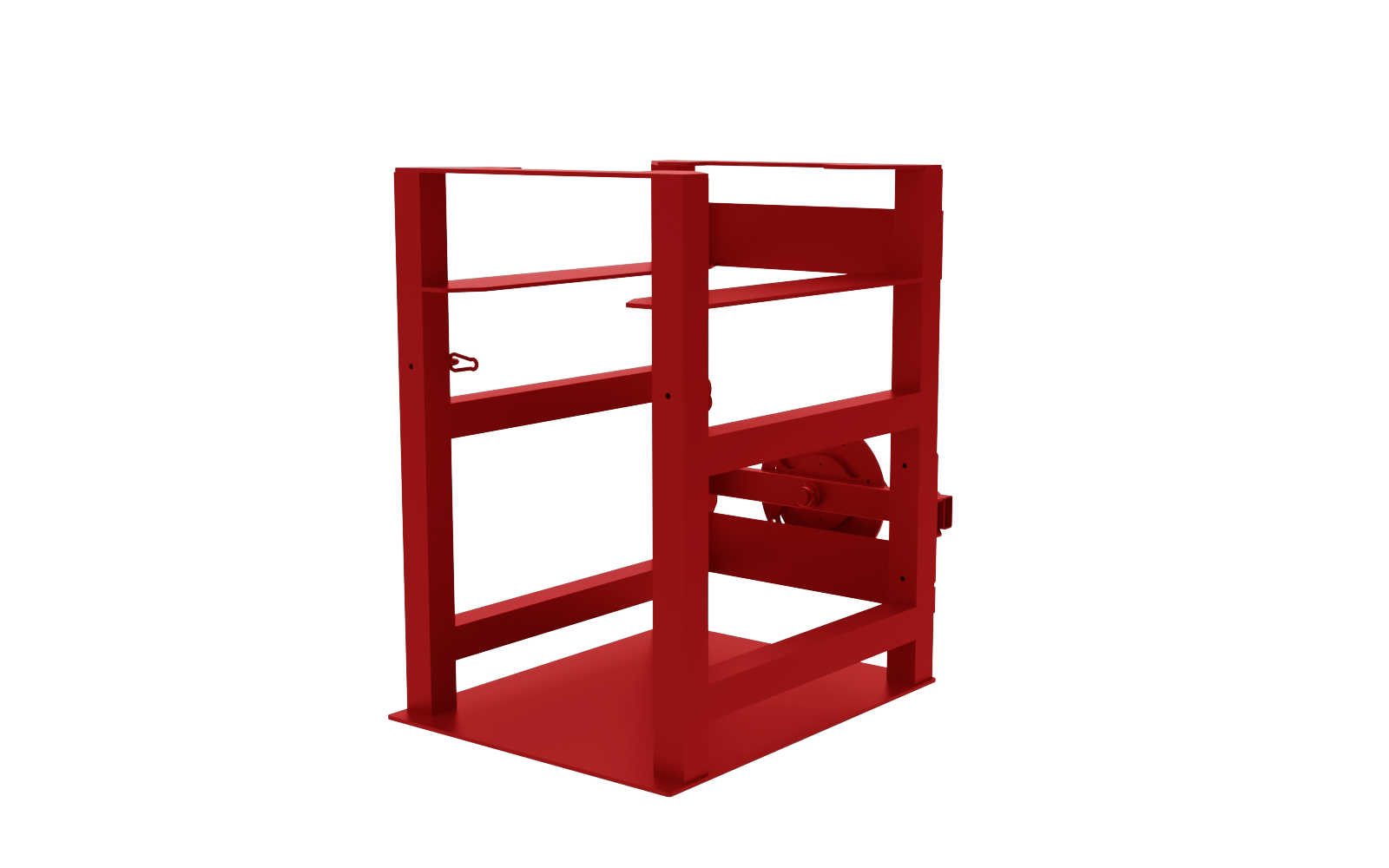

Waste bon tilting gripper

This tool allows for the handling of loads up to 80 kg, and its weight depends on its configuration.
The tool is available in customizable steel.
The gripper is adjustable from 400 to 900 mm in length, and the width from 400 to 800 mm.

This tool is compatible with the following trolleys: R.85 – R.125 – R.205

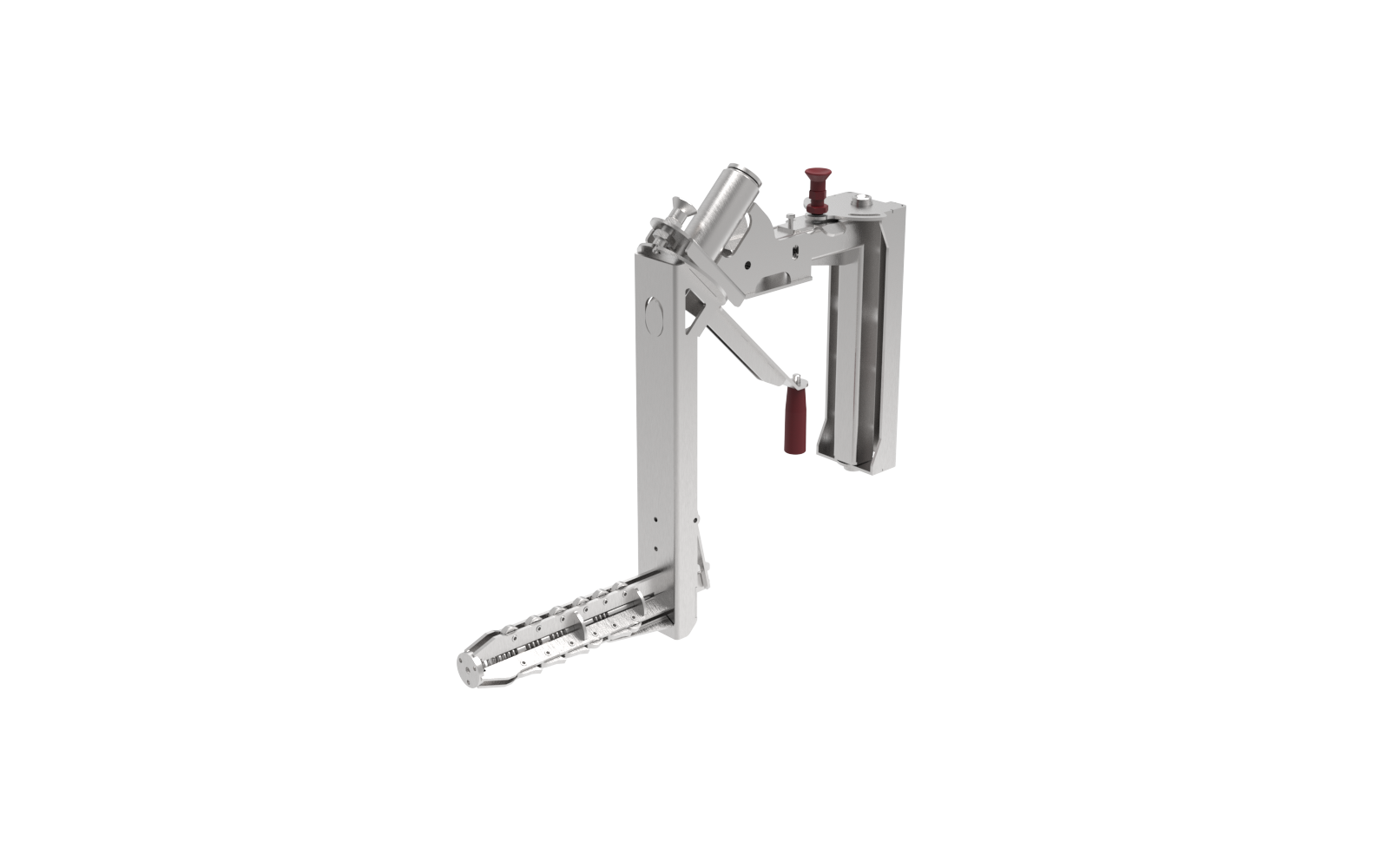

Core gripper for reels

This gripper allows for the handling of loads up to 80 kg and weighs 14 kg.
The tool is made of 304 L stainless steel.
The gripper measures 283 mm in length and 76 mm in width.

This tool is compatible with the following trolleys: R.85 – R.125 – R.205

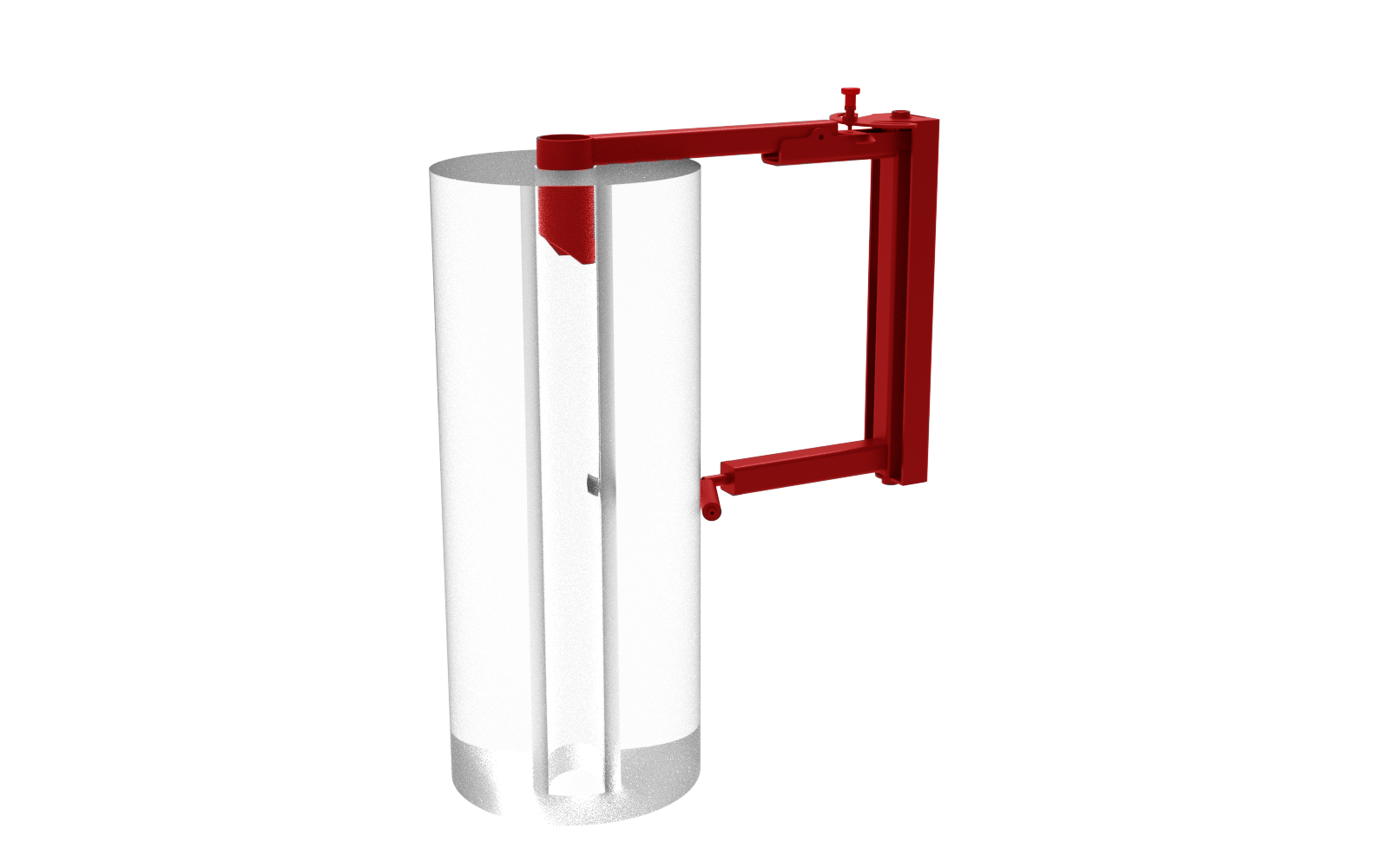

Vertical core gripper

This vertical core gripper allows for the handling of loads up to 80 kg and weighs 6 kg.
The tool is made of 304 L stainless steel.
The gripper measures 76 mm in width.

This tool is compatible with the following trolleys: R.55 – R.65 – R.85 – R.125
